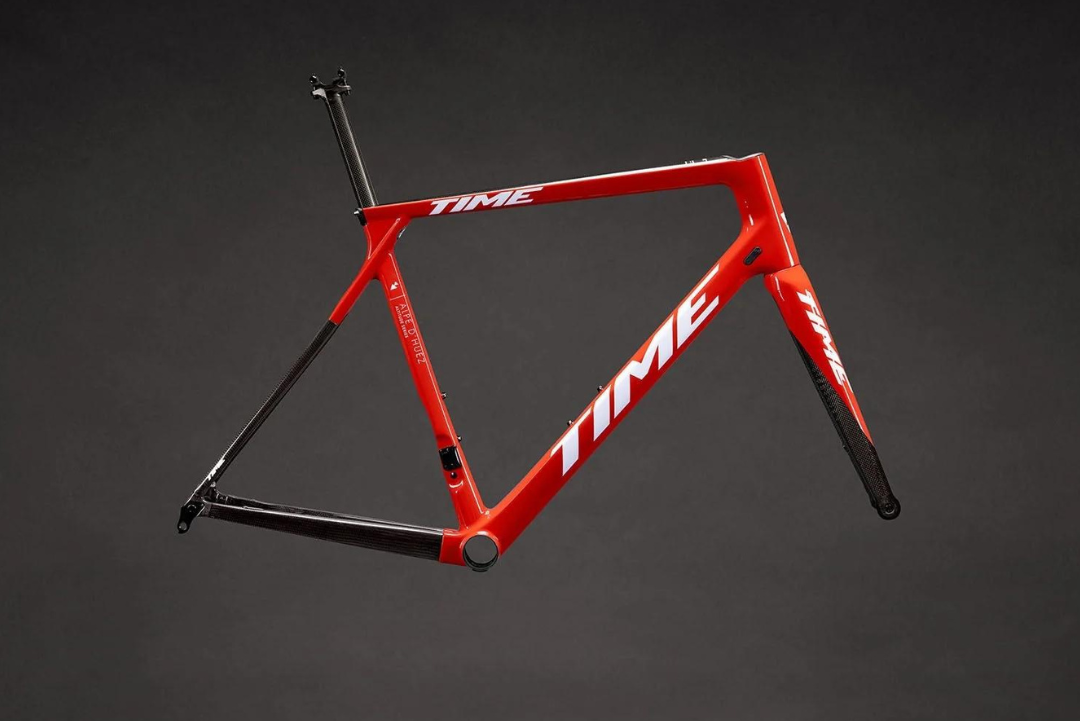

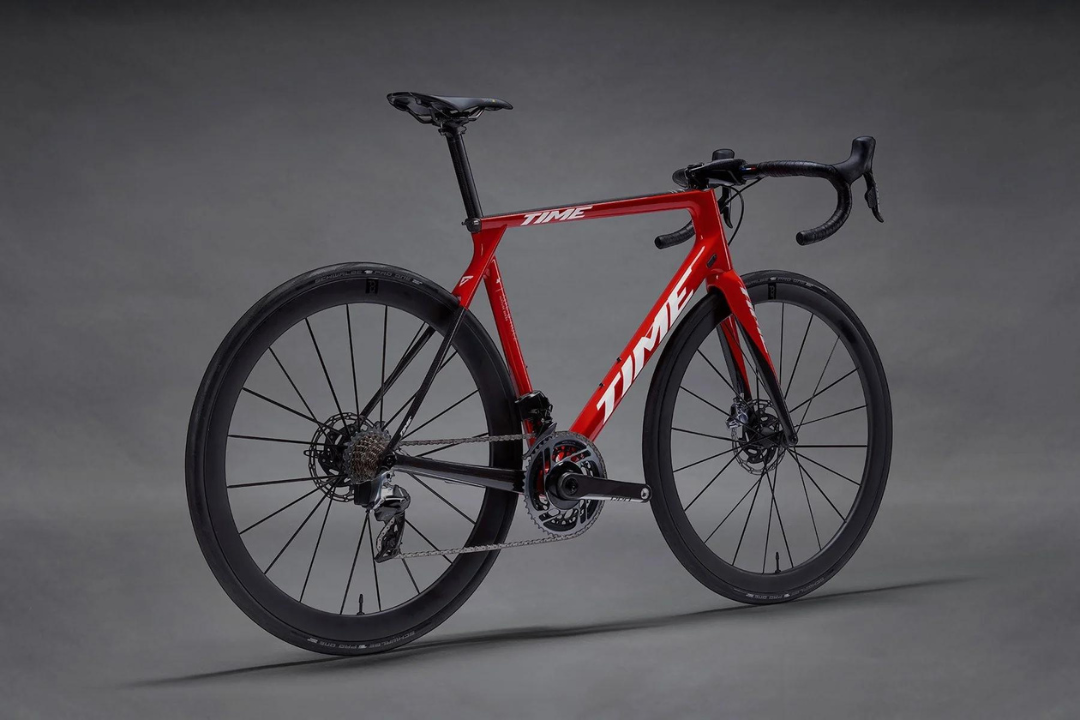

The Alpe d’Huez 01 is more than a match for its namesake climb clinging to the slopes above the Bourg d’Oisans valley. To tackle mythical ascents everywhere, we’ve created a legendary bicycle – at under 900g, the Alpe d’Huez 01 is the lightest frame TIME has produced. A simple look at the scale, however, doesn’t reveal the agility and comfort of this remarkable machine. By blending Vectran© fiber with high-strength and high-modulus carbon, we’ve orchestrated the perfect balance of mass, rigidity and deflection – the key ingredients for a climbing virtuoso.

Is It Your Time?
The Alpe d’Huez 01 rider is looking for top performance with contemporary styling and appreciates the stiffness and precision of a racing frame with elegant forms and clean lines. Climbers looking for low weight and powerful ‘roleurs’ who enjoy torturing frames will both appreciate the ruthless efficiency of this no-nonsense machine.

Resin Transfer Moulding (RTM) - Resin Transfer Moulding is the best way to minimize defects in the frame structure. By laying up dry fibers and then injecting resin at high pressure between rigid external AND internal molds, air pockets and voids are eliminated. Unlike the industry-standard prepreg layup and air bag moulding, RTM quality is uniform and consistent yielding a beautiful near-finished product. While the RTM process is ubiquitous in aerospace and high-end automotive applications, it’s almost unheard of in cycling and your TIME is unique.

Braded Carbon Structure (BCS) - Braided Carbon Structure is the weaving of dry fibers into complex bi-directional ‘socks.’ These tubes of fiber are easy to tune with different materials – TIME currently choses from 16 filaments to perfectly tailor our layups. This process also allows something that is unheard of in the cycling world; continuous fibers that run the full length of a structure. With standard prepreg layup, fibers end where the sheets do, creating inherent weaknesses. BCS is the way we’ve always made our products and we’re the one of the only bike manufacturers doing it.

Aktiv Fork (Optional) - Specially designed by TIME using proven vibration reduction engineering methods, the AKTIV Fork conceals an innovative tuned mass damper that neutralizes road noise before it travels to your hands and arms. Unlike polymer inserts or springs, AKTIV is incredibly light and sleek, providing real anti-fatigue benefits with a minimal weight penalty.

SKU 75192225V1200
Brand TIME Bicycles
Shipping Weight 6.0000kg
Shipping Width 0.190m
Shipping Height 0.640m
Shipping Length 1.050m
Shipping Cubic 31.920000000m3
Type Time Bicycle Framesets

Fork

Full Carbon RTM Technology with AKTIV Vibration Damping

Frame

Full Carbon RTM Technology

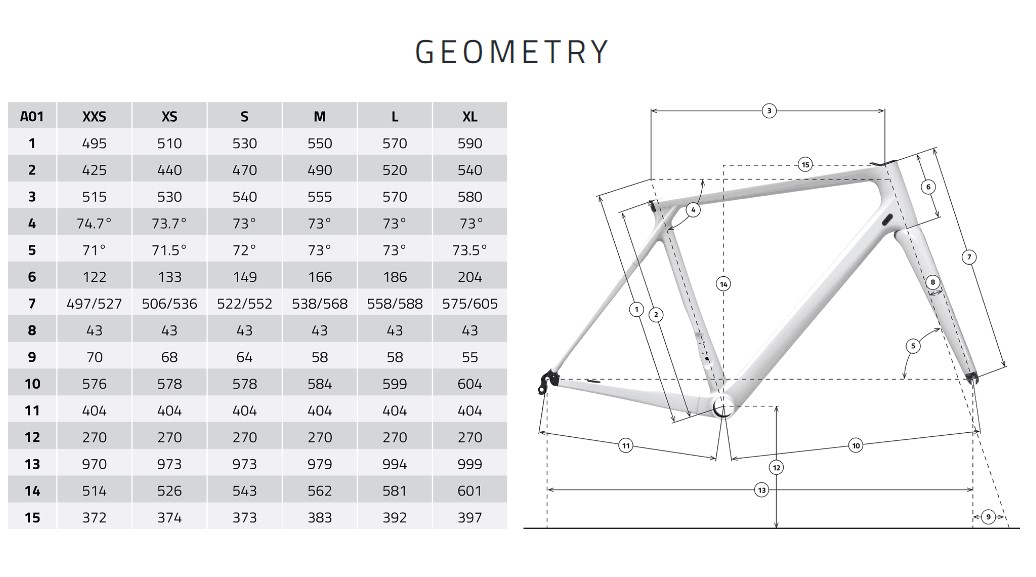

Geometry

TIME Racingdrive Geometry

Headset

TIME Quickset Adjustment System (independent mounting of the stem and adjustment of the headset)

Sizes

XXS-XS-S-M-L-XL

Materials

TIME Proprietary Carbon Fiber Braid consisting of HR Fibers (high resistance), HM fibers (high modulus) and Vectran fibers

Seat Post

Alpe d'Huez proprietary carbon post included

Wiring

Mechanical or electric

Weight

890 grams
