Carbon-Ti X-Rotor SteelCarbon 3 Center Lock 180mm
This disc rotor represents an evolution of the X-Rotor SteelCarbon 2 model, which gained widespread acclaim among MTB and road enthusiasts since its debut in 2015.
It is made for fixing on Center Lock hubs and ensures direct and efficient compatibility.

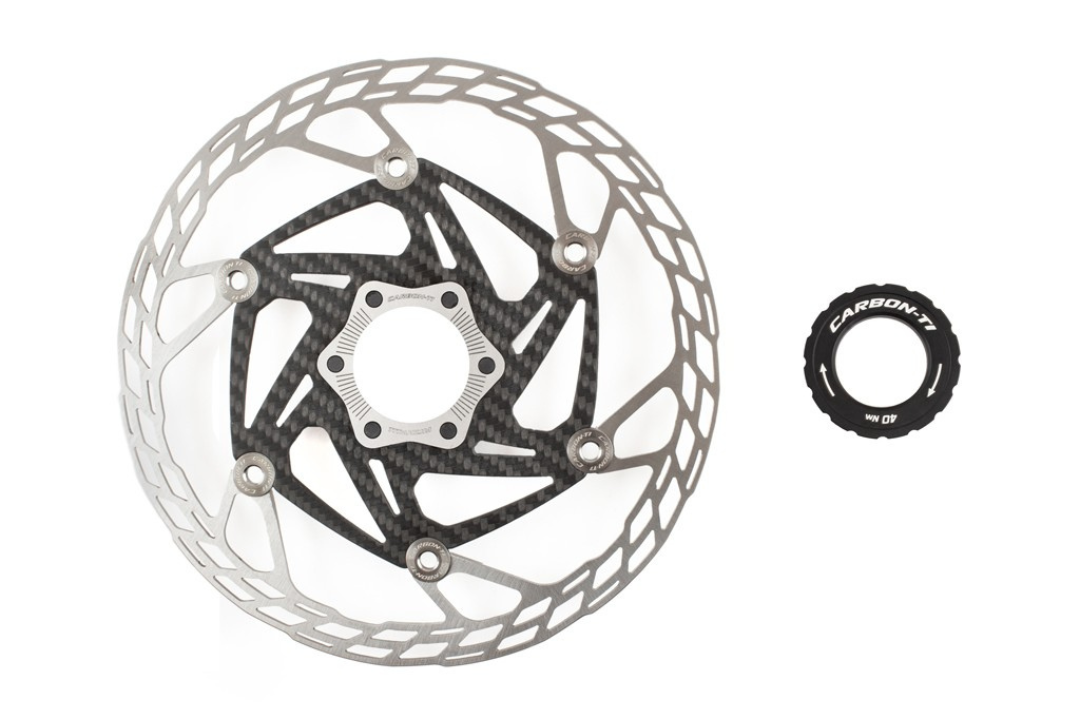

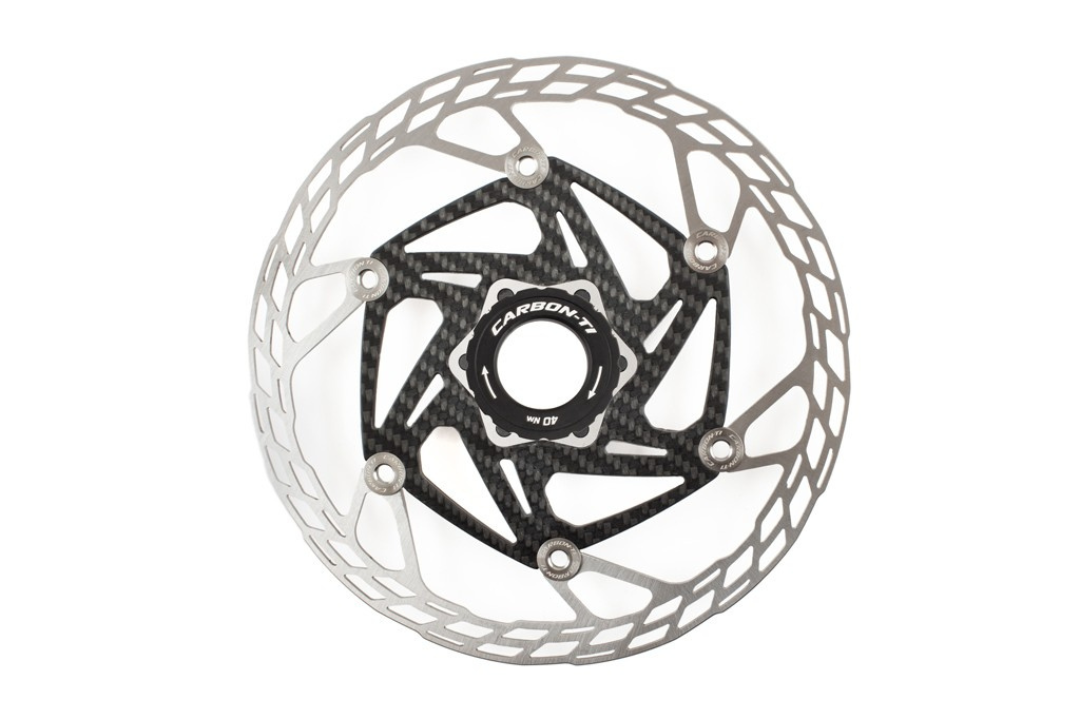

It is a superlight semi-floating disc rotor with a steel braking surface, a carbon fiber inner body, an Al7075 Center Lock specific Adapter, a laser-engraved titanium protection plate, and fixing rivets.
The disc rotors now feature a profile with rounded CNC-machined edges, that increase safety and comply with the Union Cycliste Internationale (UCI) regulations.
The 1.8mm thick special steel track has been redesigned to improve braking performance, enhance heat dissipation, and enable more even pad wear.

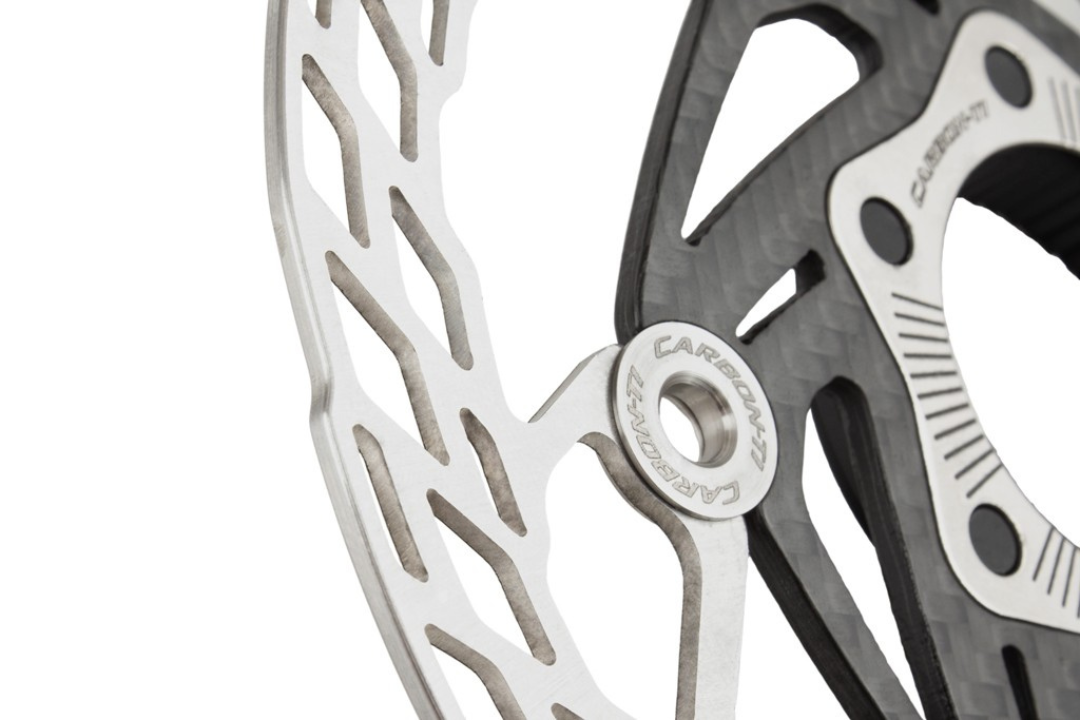

The rivets and washers are made of Grade 5 titanium and represent a highly technical solution, in line with previous versions, ensuring high lightness, strength, and reliability.
It is provided with an extremely low profile lockring, which offers wide compatibility with hubs equipped with 12, 15, or 20 mm thru-axles.
It can be used with any 180mm diameter pad.
Made in Italy.
The new X-Rotor SteelCarbon 3 Center Lock represents the highest level of technology on the market and is placed at the top both for lightness and refinement of solutions.
This disc rotor combines precision machining with artisanal 100% made-in-Italy assembly, in line with the tradition of our company.
The disc rotor features a profile with precision CNC-machined rounded edges, that increase safety and comply with the Union Cycliste Internationale (UCI) regulations. The rivets and washers are made of Grade 5 titanium and represent a technical solution in line with previous versions, ensuring high lightness, strength, and reliability.
One of the most awaited features of the new model, strongly demanded by the market, is the introduction of the Center Lock variant alongside the six-bolt International Standard fixing. The previous model could only be mounted on Center Lock hubs using third-party adapters. Now, thanks to a specific adapter developed by Carbon-Ti, the new X-Rotor SteelCarbon 3 Center Lock can be easily installed on Center Lock hubs, ensuring direct and efficient compatibility.
For this reason, the carbon body of the disc rotor has been redesigned, optimizing the installation of the specific Center Lock adapter to provide a lightweight and highly performing system.
The adapter provided with the X-Rotor SteelCarbon 3 Center Lock disc rotors comes with a valuable laser-engraved titanium protection plate that fits into the carbon shape perfectly.
The exceptional development of the new X-Rotor SteelCarbon 3 disc rotors was made possible thanks to a close collaboration with the UAE Team Emirates World Tour team.
For months, professional cyclists from this prestigious team have tested the X-Rotor SteelCarbon 3 discs on their Colnago V4RS bikes in extremely challenging conditions.
The success of these tests was evident during the recent Giro d'Italia, where the brake disc rotors showcased their performance on the field.
| SKU | XROTORSC3CL180 |
| Brand | Carbon-Ti |
| Product Category | Disc Rotors |
| Carbon-Ti Components | Rotors |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.020m |
| Shipping Height | 0.150m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.110000000m3 |
| Type | Carbon-Ti Rotors |
