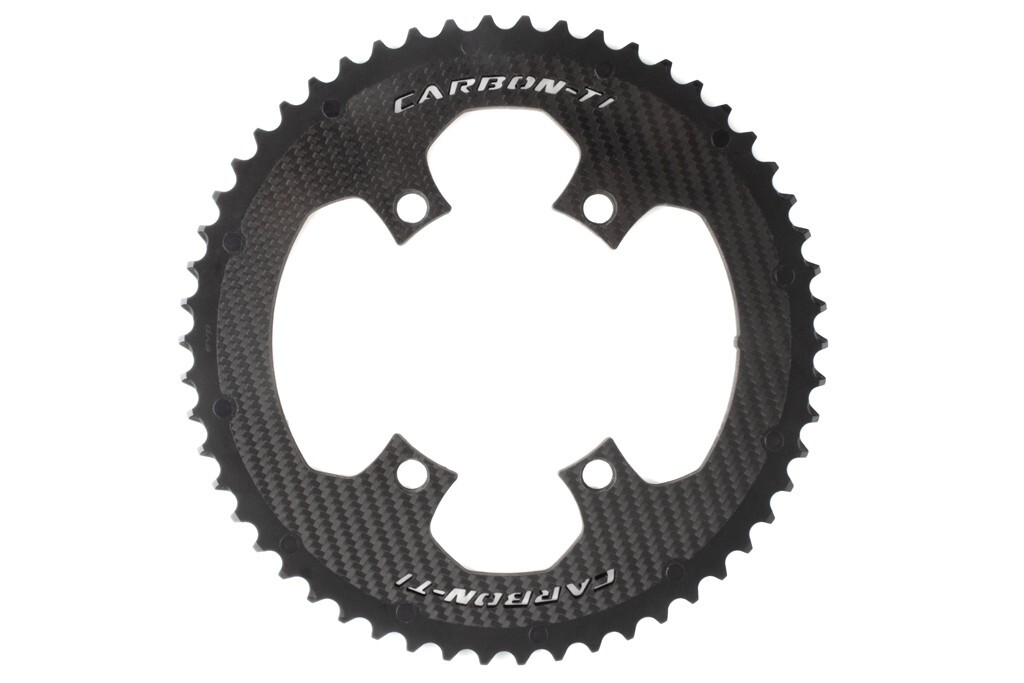

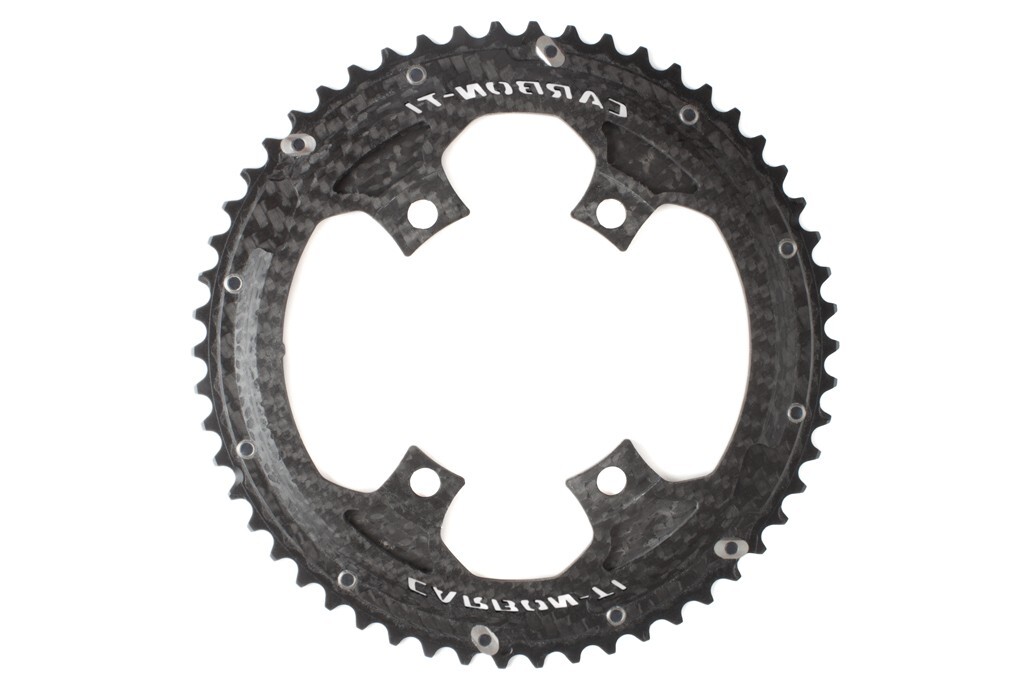

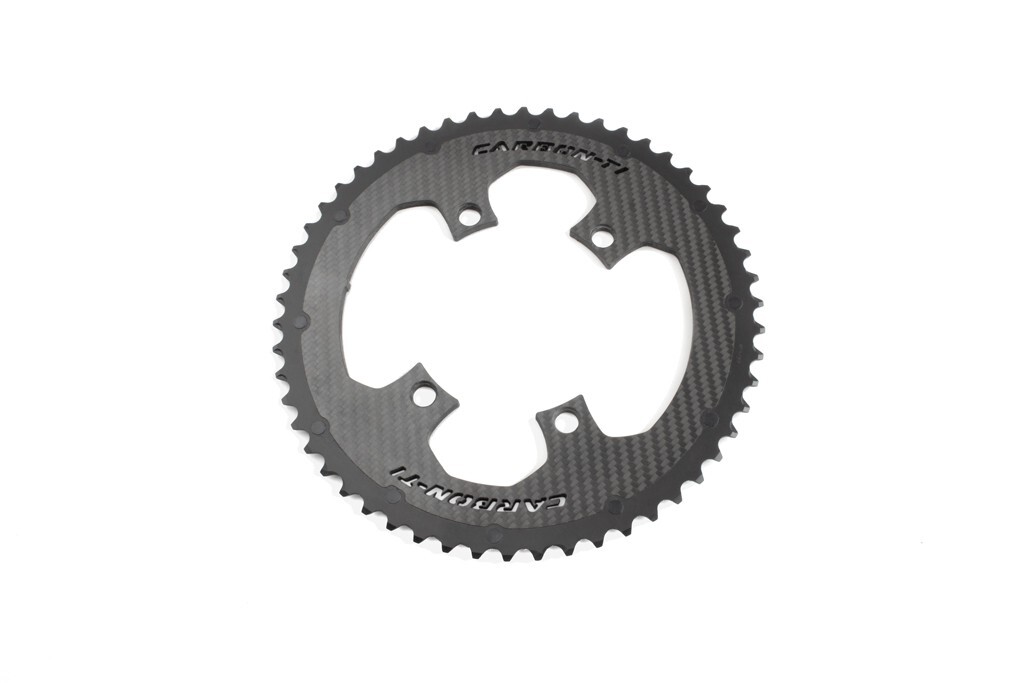

Carbon-Ti X-CarboRing EVO 54 x 110 (4 arms) Chainring
Chainring in AL7075-T6 aluminum alloy, 3K glossy structural carbon fiber with Titanium Grade 5 elements.
Outer gear with 54 teeth and BCD 110 mm 4 arms, compatible with SRM Origin, and Rotor Power Meter INSpider cranks. Compatible with Shimano 11-12 speed and SRAM 11 speed chains and groups.
Not compatible with SRAM AXS 12 speed groups (choose the specific X-AXS chainrings).
It must be coupled with its inner X-CarboRing 40 x 110 (4 arms) chainring. It's recommanded the use of X-Fix ROAD specific kit, made of AL7075-T6 alloy with customized laser engravings and available in a wide range of anodized colors.
100% made in Italy.
X-CarboRing EVO is the latest evolution of super-light chainrings for racing bikes with a composite structure in aluminum alloy and carbon fiber proposed by Carbon-Ti.
X-Carboring EVO BCD 110 (4 arms) are made for SRM Origin power meters and Rotor INSpider cranks. The wording "EVO" distinguishes this new generation of external chainrings which adopts the well known innovations that already belong to the latest "X-AXS" chainrings specific for SRAM AXS 12s groupsets.
In detail, the outer chainrings are now produced with a thicker carbon fiber plates, to obtain a higher stiffness and to allow a more elaborate CNC machining. These ramps together with the redesigned titanium elements have the function of "harpooning" the chain, transferring it from the smallest to the largest chainring and allow fast and precise up-shiftings and down-shiftings with both electronic and mechanical derailleurs.
X-Carboring EVO chainrings are available in sizes 52/36 and 50/34 as well as in the unedited 54/40.Compatibility is ensured for Shimano 11 and 12 speed, Campagnolo 11 and 12 speed and SRAM 11 speed groupsets (and chains).
The X-Fix ROAD is the compatible fixing bolts kit. It is made of AL7075-T6 alloy with customized laser engravings and it is available in a wide range of anodized colors.
Our X-Carboring EVO like all other Carbon-Ti products, are proudly 100% made in Italy.
| SKU | XCRE54I110SH |
| Brand | Carbon-Ti |
| Product Category | Chainrings |
| Carbon-Ti Components | Chainrings |
| BCD | 110 |
| Arms | 4 Arms |
| Ratio | 54T |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.250m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.156250000m3 |
| Type | Carbon-Ti Chainrings |
